DMC Series-10 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-980


Travel
X-axis 800 / (31.5") mm/(inch)
Y-axis 900(35.4") mm/(inch)
Z-axis 550 / (21.6") mm/(inch)
Z axis(O.P.) 670/26.4 mm/(inch)
Spindle nose to table surface 100~770(3.9~30.3") mm/(inch)
Distance between columns 1000/39 mm/(inch)
Table Dimension 800 x 900 (31.5 x 35.4") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 18kw / 80NM kw/NM

DMC-9120


Travel
X-axis 1200 / (47.2") mm/(inch)
Y-axis 900(35.4") mm/(inch)
Z-axis 550 / (21.6") mm/(inch)
Z axis(O.P.) 670/26.4 mm/(inch)
Spindle nose to table surface 100~770(3.9~30.3") mm/(inch)
Distance between columns 1000/39 mm/(inch)
Table Dimension 1300 x 900(51.2 x 35.4") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 18kw / 80NM kw/NM

DMC Series-12 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-2212


Travel
X-axis 2200(86.6") mm/(inch)
Y-axis 1100(43.3") mm/(inch)
Z-axis 700(27.5") mm/(inch)
Z axis(O.P.)   mm/(inch)
Spindle nose to table surface 100~800(3.9~31.4") mm/(inch)
Distance between columns 1200/47.2 mm/(inch)
Table Dimension 2300x900(90.5 x 35.4") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 18kw / 80NM kw/NM

DMC-3212


Travel
X-axis 2200(86.6") mm/(inch)
Y-axis 1100(43.3") mm/(inch)
Z-axis 700(27.5") mm/(inch)
Z axis(O.P.)   mm/(inch)
Spindle nose to table surface 100~800(3.9~31.4") mm/(inch)
Distance between columns 1200/47.2 mm/(inch)
Table Dimension 3300x900(129.9 x 35.4") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 18kw / 80NM kw/NM

DMC Series-15 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

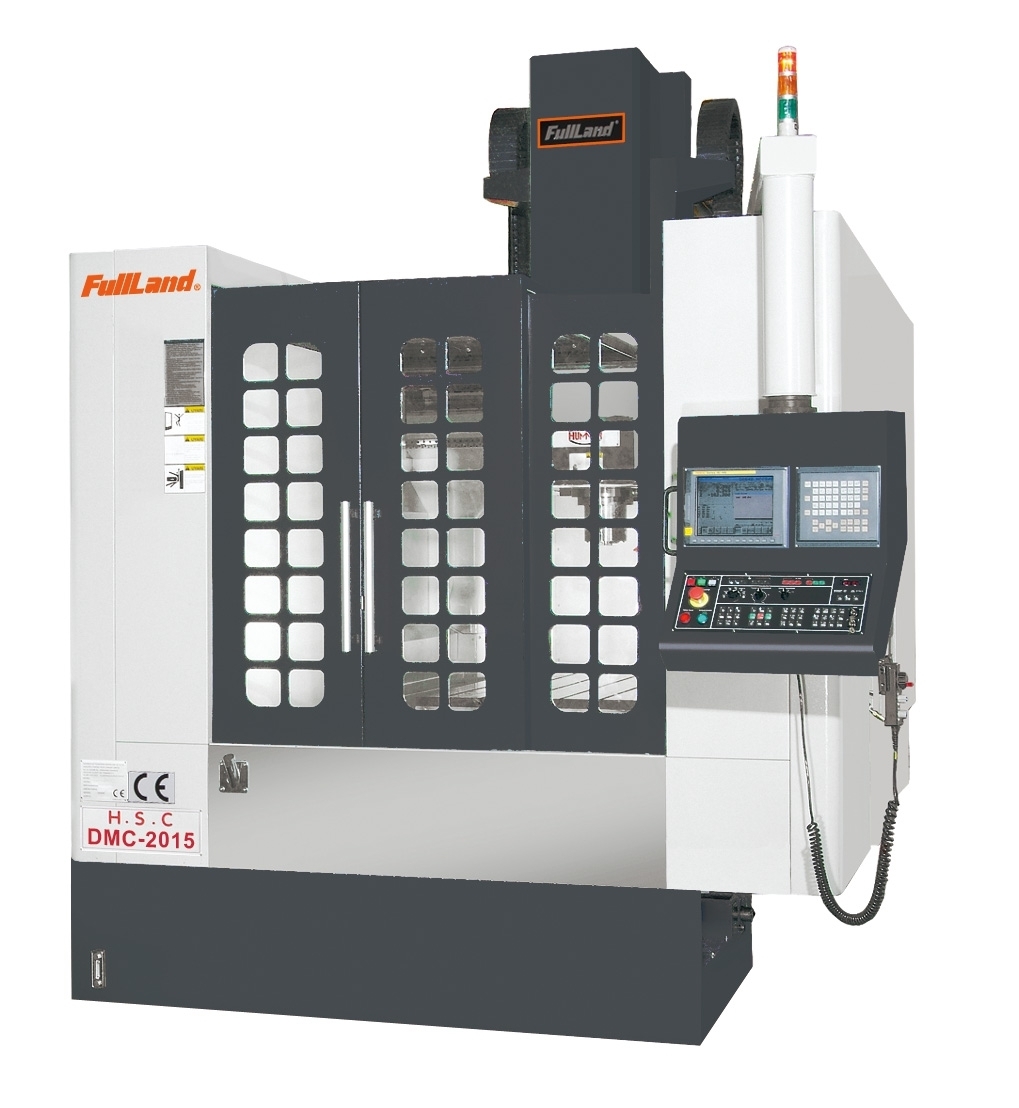

DMC-2015


Travel
X-axis 2000(78.7") mm/(inch)
Y-axis 1350(53") mm/(inch)
Z-axis 700(27.6") mm/(inch)
Z axis(O.P.) 900/35.4 mm/(inch)
Spindle nose to table surface 110~810(4.3~31.8") mm/(inch)
Distance between columns 1500/59​ mm/(inch)
Table Dimension 2000 x 1200(78.7 x 47.2") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 21kw / 200NM kw/NM

DMC-2615


Travel
X-axis 2600(102.4") mm/(inch)
Y-axis 1350(53") mm/(inch)
Z-axis 700(27.6") mm/(inch)
Z axis(O.P.) 900/35.4 mm/(inch)
Spindle nose to table surface 110~810(4.3~31.8") mm/(inch)
Distance between columns 1500/59​ mm/(inch)
Table Dimension 2700 x 1200(106.3 x 47.2") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 21kw / 200NM kw/NM

DMC Series-18 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-2518


Travel
X-axis 2500(98.4") mm/(inch)
Y-axis 1700(67") mm/(inch)
Z-axis 900(35.4") mm/(inch)
Z axis(O.P.)   mm/(inch)
Spindle nose to table surface 120~1020(4.7~40.1") mm/(inch)
Distance between columns 1800/70.8 mm/(inch)
Table Dimension 2700 x 1700(86.6 x 67") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 21kw / 200NM kw/NM

DMC-3018


Travel
X-axis 3000(118") mm/(inch)
Y-axis 1700(67") mm/(inch)
Z-axis 900(35.4") mm/(inch)
Z axis(O.P.)   mm/(inch)
Spindle nose to table surface 120~1020(4.7~40.1") mm/(inch)
Distance between columns 1800/70.8 mm/(inch)
Table Dimension 3200 x 1700(125.9 x 67") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 21kw / 200NM kw/NM

DMC-4018


Travel
X-axis 4000(157.4") mm/(inch)
Y-axis 1700(67") mm/(inch)
Z-axis 900(35.4") mm/(inch)
Z axis(O.P.)   mm/(inch)
Spindle nose to table surface 120~1020(4.7~40.1") mm/(inch)
Distance between columns 1800/70.8 mm/(inch)
Table Dimension 4200 x 1700(165 x 67") mm/(inch)
Spindle speed (Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) / Torque Max. 21kw / 200NM kw/NM

DMC Series-22 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-3022


Travel
X-axis 3000(118") mm/(inch)
Y-axis 2100(82.6") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 2200/86.6 mm/(inch)
Table Dimension 3200 x 1800(126 x 70.8") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC-4022


Travel
X-axis 4000(157") mm/(inch)
Y-axis 2100(82.6") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 2200/86.6 mm/(inch)
Table Dimension 4200 x 1800(165 x 70.8") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC-5022


Travel
X-axis 5000(197") mm/(inch)
Y-axis 2100(82.6") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 2200/86.6 mm/(inch)
Table Dimension 5200 x 1800(204.7 x70.8") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC Series-26 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-3026


Travel
X-axis 3000(118") mm/(inch)
Y-axis 2500(94") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 2600/102.3 mm/(inch)
Table Dimension 3200 x 2150(126 x 84.6") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC-4026


Travel
X-axis 4000(157") mm/(inch)
Y-axis 2500(98.4") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 2600/102.3 mm/(inch)
Table Dimension 4200 x 2150(165.3 x 84.6") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC-5026


Travel
X-axis 5000(197") mm/(inch)
Y-axis 2500(98.4") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 2600/102.3 mm/(inch)
Table Dimension 5200 x 2150(204.7 x 84.6") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC Series-30 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-4030


Travel
X-axis 4000(157") mm/(inch)
Y-axis 2900(114") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 3000/118 mm/(inch)
Table Dimension 4200 x 2700(165 x 106") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC-5030


Travel
X-axis 5000(197") mm/(inch)
Y-axis 2900(114") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 3000/118 mm/(inch)
Table Dimension 5200 x 2700(205 x 106") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC-6030


Travel
X-axis 6000(236") mm/(inch)
Y-axis 2900(114") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 3000/118 mm/(inch)
Table Dimension 6200 x 2700(244 x 106") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC Series-35 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-7035


Travel
X-axis 7000(275.6") mm/(inch)
Y-axis 7000(275.6") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 3500/138 mm/(inch)
Table Dimension 7200 x 3200(283.4 x 126") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM

DMC Series-40 Series

Products List

  Travel
X-axis 800~1200/(31.5~47.2) mm/(inch)
Y-axis 900/(35.4) mm/(inch)
Z-axis 550/(21.6) mm/(inch)
Spindle nose to table surface 100~770/(3.9~30.3) mm/(inch)
Distance between columns 1000/39 mm/(inch)
Spindle speed (Built-in type) 18,000 rpm

DMC-8040


Travel
X-axis 8000(315") mm/(inch)
Y-axis 3900(153.5") mm/(inch)
Z-axis 1000(39.4") mm/(inch)
Z axis(O.P.) Option 1100mm(43.3") 1300mm(51.2") 1500mm(59") mm/(inch)
Spindle nose to table surface 120~1120(4.7~44.1") mm/(inch)
Distance between columns 4000/160 mm/(inch)
Table Dimension 8200 x 3700(322.8 x 145.6") mm/(inch)
Spindle speed (Built-in type) BT50 (8000 / 10000 / 12000rpm) RPM
Spindle motor (Built-in type) / Torque Max. FANUC αB160LL(30kw), L:350NM, H:95NM kw/NM
Back to Top
