GLG Series-GLG Series

Products List

  Travel
X-axis 610~2000(24"~78.7") mm/(inch)
Y-axis 460~900(18.1"~35.4") mm/(inch)
Z-axis 480~730(18.8"~28.7") mm/(inch)
Spindle nose to table surface 100-910 (3.9"-35.8") mm/(inch)
Spindle center to column surface 500~965(19.6"~37.9") mm/(inch)
Table load (maximun) 300~3000(660~6600) KG(Ibs)

GLG-2590


TRAVEL
X-axis 2500(98.4") mm/(inch)
Y-axis 900(35.4") mm/(inch)
Z-axis 730(28.7")opt mm/(inch)
Spindle nose to table surface 110-840 (5.1"-35.8") mm/(inch)
Spindle center to column surface 965(37.9") mm/(inch)
X.Y.Z. Axis Ball screws dia 50 x pitch12 mm/(inch)
Table Size 2600 x 800 (102.3" x 31.4") mm/(inch)
Working Area 2500x 900 (98.4" x 35.4") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 8 mm/(inch)
Table load (maximun) 4000(8800) KG(Ibs)

GLG-2190


TRAVEL
X-axis 2100(82.6") mm/(inch)
Y-axis 900(35.4") mm/(inch)
Z-axis 730(28.7") mm/(inch)
Spindle nose to table surface 110-840 (5.1"-35.8") mm/(inch)
Spindle center to column surface 965(37.9") mm/(inch)
X.Y.Z. Axis Ball screws dia 50 x pitch12 mm/(inch)
Table Size 2200 x 800 (86.6" x 31.4") mm/(inch)
Working Area 2100x 900 (82.6" x 35.4") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 8 mm/(inch)
Table load (maximun) 3000(6600) KG(Ibs)

GLG-1890


TRAVEL
X-axis 1800(70.8") mm/(inch)
Y-axis 900(35.4") mm/(inch)
Z-axis 730(28.7") mm/(inch)
Spindle nose to table surface 110-840 (5.1"-35.8") mm/(inch)
Spindle center to column surface 965(37.9") mm/(inch)
X.Y.Z. Axis Ball screws dia 50 x pitch12 mm/(inch)
Table Size 1900 x 800 (74.8" x 31.4") mm/(inch)
Working Area 1800x 900 (70.8" x 35.4") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 8 mm/(inch)
Table load (maximun) 2500(5500) KG(Ibs)

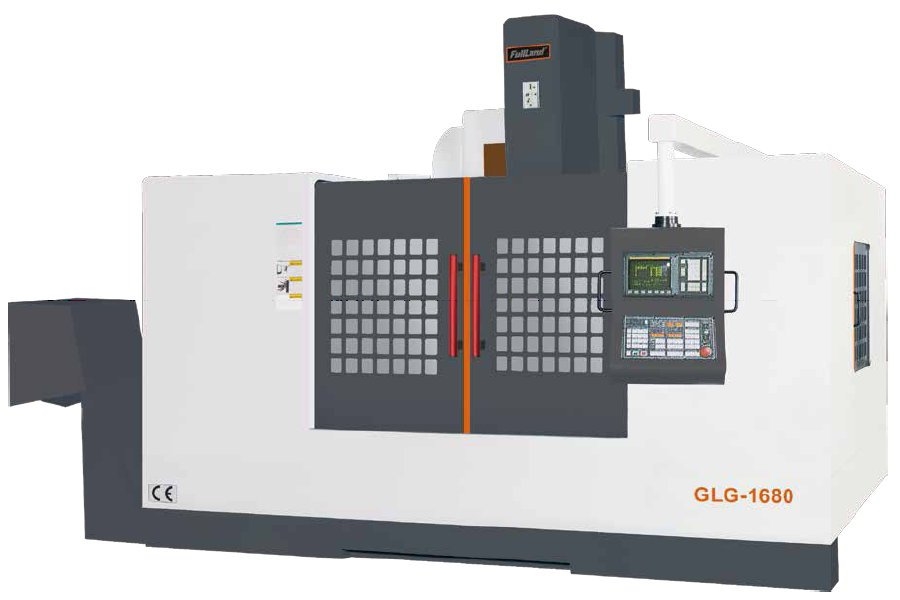

GLG-1680


TRAVEL
X-axis 1600(62.9") mm/(inch)
Y-axis 800(31.4") mm/(inch)
Z-axis 700 (27.5") mm/(inch)
Spindle nose to table surface 110-840 (5.1"-35.8") mm/(inch)
Spindle center to column surface 965(37.9") mm/(inch)
X.Y.Z. Axis Ball screws dia 50 x pitch12 mm/(inch)
Table Size 1700 x 800 (66.9" x 31.4") mm/(inch)
Working Area 1600x 800 (62.9" x 31.4") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 8 mm/(inch)
Table load (maximun) 2000(4400) KG(Ibs)

GLG-1575


TRAVEL
X-axis 1500(59.1") mm/(inch)
Y-axis 750(29.5") mm/(inch)
Z-axis 650(25.5") mm/(inch)
Spindle nose to table surface 100-750 (3.9"-29.5") mm/(inch)
Spindle center to column surface 765(30") mm/(inch)
X.Y.Z. Axis Ball screws dia 40 x Pitch12 mm/(inch)
Table Size 1600 x 650 (62.9" x 25.5") mm/(inch)
Working Area 1500x 750 (59.1" x 29.5") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 5 mm/(inch)
Table load (maximun) 1500(3300) KG(Ibs)

GLG-1370


TRAVEL
X-axis 1300(55.1") mm/(inch)
Y-axis 700(27.5") mm/(inch)
Z-axis 650(25.5") mm/(inch)
Spindle nose to table surface 100-750 (3.9"-29.5") mm/(inch)
Spindle center to column surface 765(30") mm/(inch)
X.Y.Z. Axis Ball screws dia 40 x Pitch12 mm/(inch)
Table Size 1400 x 650 (55.11" x 25.5") mm/(inch)
Working Area 1200x 700 (47.2" x 27.5") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 5 mm/(inch)
Table load (maximun) 1300(2860) KG(Ibs)

GLG-1170


TRAVEL
X-axis 1100(43.3") mm/(inch)
Y-axis 700(27.5") mm/(inch)
Z-axis 650(25.5") mm/(inch)
Spindle nose to table surface 100-750 (3.9"-29.5") mm/(inch)
Spindle center to column surface 765(30") mm/(inch)
X.Y.Z. Axis Ball screws dia 40 x Pitch12 mm/(inch)
Table Size 1200 x 650 (47.2" x 25.5") mm/(inch)
Working Area 1100x 650 (43.3" x 25.5") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 5 mm/(inch)
Table load (maximun) 1100(2420) KG(Ibs)

GLG-1166


TRAVEL
X-axis 1100(43.3") mm/(inch)
Y-axis 610(24") mm/(inch)
Z-axis 610(24") mm/(inch)
Spindle nose to table surface 100-710 (3.9"-27.9") mm/(inch)
Spindle center to column surface 645(25.4") mm/(inch)
X.Y.Z. Axis Ball screws dia 40 x Pitch12 mm/(inch)
Table Size 1200 x 560 (47.2"x22") mm/(inch)
Working Area 1200x600 (47.2"x23.6") mm/(inch)
Tee slots (CD x W x NO) CD 100x18x5 mm/(inch)
Table load (maximun) 900 (1980) KG(Ibs)

GLG-1100


TRAVEL
X-axis 1100(43.3") mm/(inch)
Y-axis 650(25.5") mm/(inch)
Z-axis 650(25.5") mm/(inch)
Spindle nose to table surface 100-750 (3.9"-29.5") mm/(inch)
Spindle center to column surface 700(27.5") mm/(inch)
X.Y.Z. Axis Ball screws dia 40 x Pitch12 mm/(inch)
Table Size 1200 x 650 (47.2" x 25.5") mm/(inch)
Working Area 1100x 650 (43.3" x 25.5") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 5 mm/(inch)
Table load (maximun) 1100(2420) KG(Ibs)

GLG-1020


TRAVEL
X-axis 1020(40.1") mm/(inch)
Y-axis 530(20.8") mm/(inch)
Z-axis 610(24") mm/(inch)
Spindle nose to table surface 100-710 (3.9"-27.9") mm/(inch)
Spindle center to column surface 550(21.6") mm/(inch)
X.Y.Z. Axis Ball screws dia 40 x Pitch12 mm/(inch)
Table Size 1100 x 510 (43.3" x 20") mm/(inch)
Working Area 1100 x 510 (43.3" x 20") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 4 mm/(inch)
Table load (maximun) 800(1760) KG(Ibs)

GLG-860


TRAVEL
X-axis 860(33.8") mm/(inch)
Y-axis 480(18.8") mm/(inch)
Z-axis 500(19.6") mm/(inch)
Spindle nose to table surface 100-600 (3.9"-23.6") mm/(inch)
Spindle center to column surface 520(20.4") mm/(inch)
X.Y.Z. Axis Ball screws dia 32 x Pitch12 mm/(inch)
Table Size 960x 460 (37.7" x 18.1") mm/(inch)
Working Area 860x 480 (33.8" x 18.8") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 3 mm/(inch)
Table load (maximun) 600(1320) KG(Ibs)

GLG-610


TRAVEL
X-axis 610(24") mm/(inch)
Y-axis 460(18.1") mm/(inch)
Z-axis 480(18.8") mm/(inch)
Spindle nose to table surface 100-580 (3.9"-22.8") mm/(inch)
Spindle center to column surface 500(19.6") mm/(inch)
X.Y.Z. Axis Ball screws dia 32/12 Pitch-16mm(opt) mm/(inch)
Table Size 700x 460 (27.5" x 18.1") mm/(inch)
Working Area 610x 460 (24" x 18.1") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 3 mm/(inch)
Table load (maximun) 300(660) KG(Ibs)

GLG-1266


TRAVEL
X-axis 1200(47.2") mm/(inch)
Y-axis 610 (24") mm/(inch)
Z-axis 610 (24") mm/(inch)
Spindle nose to table surface 100-710 (3.9"-27.9") mm/(inch)
Spindle center to column surface 645(25.4") mm/(inch)
X.Y.Z. Axis Ball screws dia 40 x Pitch12 mm/(inch)
Table Size 1300 x 560 (51.1"x22") mm/(inch)
Working Area 1300 x 600 (51.1"x23.6") mm/(inch)
Tee slots (CD x W x NO) CD100 x 18 x 5 mm/(inch)
Table load (maximun) 1000 (2200) KG(Ibs)
