DMC-5XH Series-18 Series - DMC-2518-5XH

DMC-2518-5XH Download


TRAVEL
X axis  3000 / 118˝ mm/(inch)
Y axis  1700 +480 / (66.9˝ +18.8˝) mm/(inch)
Z axis  900 / 35.4˝ mm/(inch)
Distance between columns 1800 / 70.9˝ mm/(inch)
Table size 2700 x 1200 / (106.3˝x47.2˝) mm/(inch)
Spindle speed (Built-in type) 18000 RPM rpm


Specifications

  • Machine characteristics
  • video
  • Specification Table

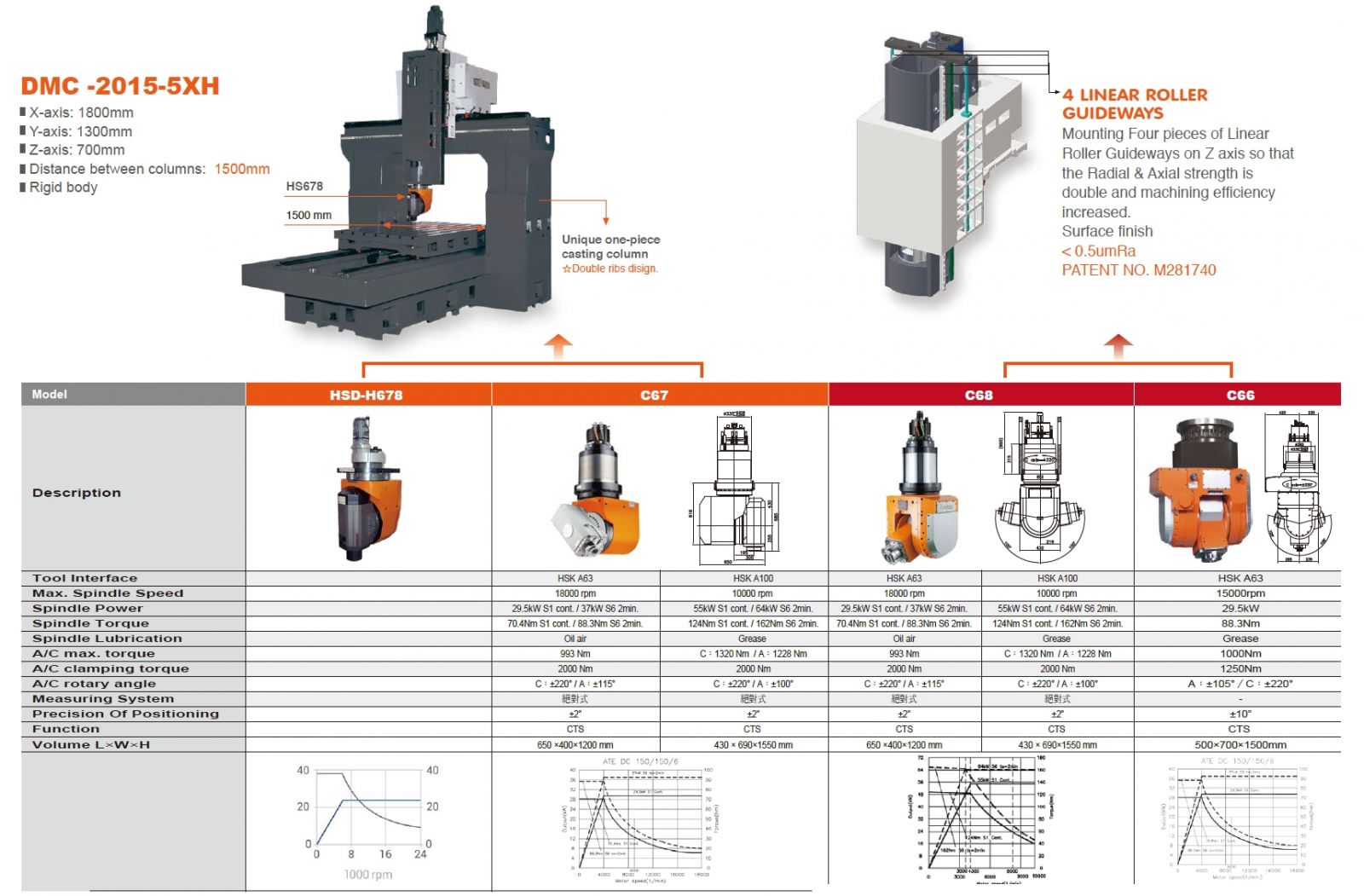

SPECIFICATION & FEATURES FOR DOUBLE COLUMN MACHINING CENTER
◎ 3 axes with Linear Guide ways - roller type provide with overall rigidity.
◎ Oil Cooling System for X.Y Axes Ballscrew.
◎ Patent No. 202004017403.0 was granted by Germany and 1059432 was granted by Spain for improvements in Y-axis (saddle) with three pieces of linear guide ways. The machining rate is increased by 25%.
◎ Z-axis (Head) with 4 pieces of Linear Guide ways enabling more stability while cutting.
◎ Screw Chip Conveyor system on both sides of bed (X-axis), to help to remove chips out of the bed, avoiding thermal growth.
◎ Patent No. 202004019862.2 and 202004019861.4 were granted by Germany for improvements on the radial ribbing design to absorb both the radial and axial forces to achieve rigid machine.
◎ Patent No. 202004019861.4 were granted by Germany for improvements on pollution-preventive mechanism on the bed.




Structure/



Quality



Spindel Torque



[Download]
TRAVEL
X axis  2500 / 98.4˝ mm/(inch)
Y axis  1700 +480 / (66.9˝ +18.8˝) mm/(inch)
Z axis  900 / 35.4˝ mm/(inch)
Distance between columns 1800 / 70.9˝ mm/(inch)
Table
Dimension 2700 x 1200 / (106.3˝x47.2˝) mm/(inch)
Working area                 (without tool length) 2020 x 1700 /  (79.5˝x66.9˝) mm/inch
T-Slot (W x No. x CD) 22 x 9 x 200 mm
Max. Table load 6200 / 13640 kgs / lbs
Spindle
Spindle speed (Built-in type) 18000 RPM rpm
Spindle motor (Built-in type) / Torque Max. 29.5kw / 70.4NM kw/NM
Spindle Taper HSK A63
Feedrate
Cutting feed 1-10,000 (DEPENGING ON CONTROLLER) mm
X/Y axis rapid traverse(o.p.) 24 (36) M
Z axis rapid traverse(o.p.) 15 M
X axis servo motor
HEIDENHAIN :
X, Y axis: QSY-190D 9.6kw 38NM
Z axis: QSY-190C 7.2kw
28NM(+Nitrogen balance)
NM
Y/Z axis servo motor
X/Y/Z axis with Gear reducer
SIEMENS :
X,Y axis: 1FK7103 5.37kw 36NM
Z axis: 1FK7101 4.87kw 27NM
( +Nitrogen balance)
NM
Linear guide (Roller Type)
X axis  X:55x2sets rpm​
Y axis  Y:45x2sets + 25x1set rpm
Z axis  Z:55x2sets rpm
Ballscrew
X axis ballscrew dia x pitch 55 x 12 mm/(in)
Y axis ballscrew dia x pitch 50 x 12 mm/(in)
Z axis ballscrew dia x pitch 45 x 10 mm/(in)
ATC
Type of tool(HSK63A/BT40)          Tool capacity
12(OP) 16/20 Armless斗笠式
Type of tool(for BT40/BT50)                              Tool capacity 24/30 (Disc type) Arm刀臂式
Type of tool(for BT40/BT50)                              Tool capacity 32/40/60/80/120 (Chain type)
Maximum tool diameter 24T(BT40) : 78(3.1˝) / 24T(BT50) : 110(4.3˝) mm/inch
Maximum tool length 24T(BT40) : 300(11.8˝) / 24T(BT50) : 350(13.8˝) mm/inch
Maximum tool weight 8(17.63) / 20(44) kgs / lbs
Tool to tool time 1.8 / 2.5 sec
Air supply 6 kg / c㎡
Power supply 35 KVA
Coolant pump 1HP x 2pcs HP
Machine weight (net) 26500 / 58300 kgs / lbs
Raiser block 200mm(O.P.) x mm
Raiser block 500mm(O.P.) x mm
*All specifications and designs are subject to change without  notice.
